Holosun K-series footprint

Holosun K-series footprint / or simply K-series footprint is relatively new footprint developed by Holosun. Its design is quite universal and among the compatible models you can find red dots for full sized pistols as well as for compact sized pistols.

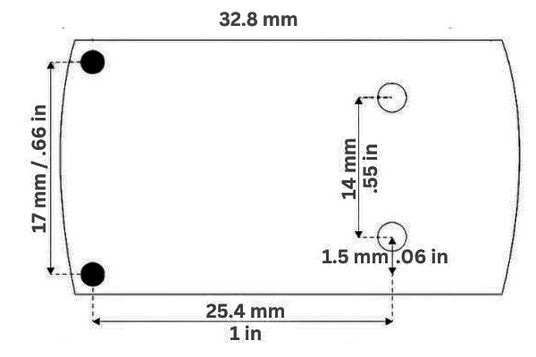

You can recognize this footprint by few details:

  • it has 2 sockets in the front,
  • the closer sockets are 17mm from each other.

Holosun K-Series footprint is different from Shield RMSc footprint

Often you can encounter statement in the way, that models that use the Holosun K-series footprint use a variation of Shield RMSc footprint. For practical purposes, lets simply say it is not true.

If you will try to install a red dot with Holosun K-series footprint, it will not fit. And there are two reasons for that:

  1. The rear Shield RMSc uses four sockets and K-series only two. Thus each mount and adapter with RMSc footprint will have extra pins in the rear. And as a result, any red dot with the Holosun K-series footprint will simply not be able to sit flush on such mounting surface.
  2. The Shield RMSc footprint uses deeper sockets in the front. For that reason, even if you somehow remove the rear pins on the mounting solutions, the front pins will still be too high for your red dot with Holosun K-series footprint.

So unless you use a special extra adapter to get from Shield RMSc footprint to Holosun K-series footprint, the footprints are not compatible.

Full compatibility list [2025 update]

Optics compatible with Holosun K-series footprint:

Mounting options for Optics Ready models

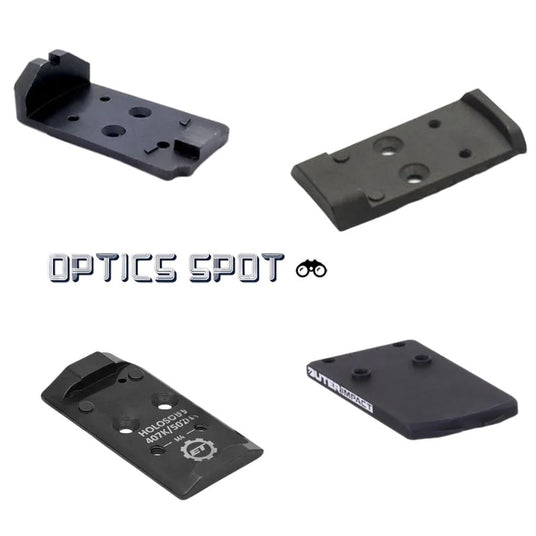

If you have optics ready handgun, you need to be searching for optics ready plate with Holosun K-series footprint:

Make sure to search for plate with "Holosun K-series footprint" that also has your handgun in the compatibility list.

Mounting options for classic models

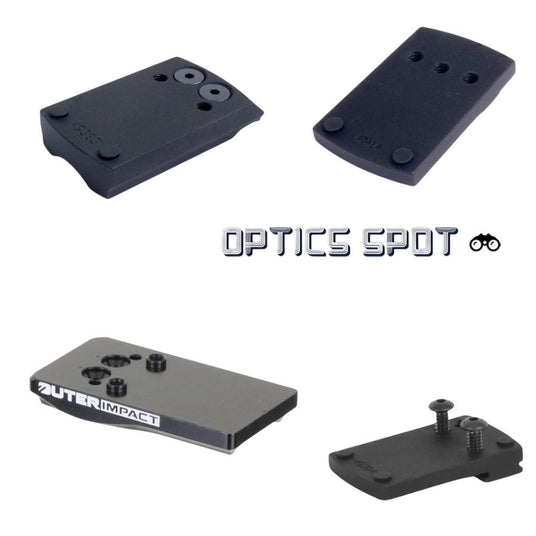

If you have classic handgun, you need to be searching for a red dot mount which replaces rear sight in the dovetail cut: red dot mount with Holosun K-series footprint:

Make sure to search for mount with "Holosun K-series footprint" that also has your handgun in the compatibility list.
